1. Introduction: Why Industrial Cooling Fans Matter for Equipment Heat Management

Industrial equipment is becoming increasingly compact, powerful, and intelligent. From automated production lines and electrical control cabinets to communication systems, medical equipment, and commercial appliances, modern machines often integrate more electronic components into limited spaces. Although this development improves functionality and production efficiency, it also creates a significant engineering challenge: effective heat management.

During normal operation, motors, power supplies, circuit boards, semiconductor devices, and other electrical components generate heat. When this heat cannot be removed efficiently, internal temperatures may rise beyond recommended operating limits. Excessive heat can accelerate component aging, affect measurement accuracy, trigger thermal protection, reduce operating efficiency, and contribute to unexpected equipment downtime.

Industrial cooling fans provide a practical solution by establishing controlled airflow around heat-generating components. Rather than relying exclusively on natural convection, a forced-air cooling system moves air through an enclosure, across a heat sink, or along a designated ventilation channel. This improves convective heat transfer and helps equipment maintain a more stable operating temperature.

However, choosing an industrial cooling fan involves more than selecting a product with a high rotational speed or a large airflow rating. Engineers must consider heat load, system resistance, installation space, electrical compatibility, ambient conditions, noise limits, maintenance requirements, and expected service life.

A fan that performs well in an open test environment may deliver substantially less airflow after installation behind a protective grille or dust filter. Similarly, a compact fan with excellent electrical efficiency may still be unsuitable if its airflow cannot reach the hottest components.

This is why industrial cooling fans should be selected as part of an integrated thermal management strategy rather than treated as isolated accessories.

For equipment manufacturers, the objective is to identify a cooling solution that delivers sufficient heat removal, reliable operation, manageable noise, and a reasonable total cost throughout the product life cycle.

Chungfo Fan provides fan and blower solutions for industrial equipment and electronic applications. By evaluating the operating environment, required airflow, mounting dimensions, and electrical specifications, equipment manufacturers can identify suitable cooling products for their designs.

2. How Industrial Cooling Fans Remove Heat from Equipment

Understanding the heat transfer process is the first step toward designing an effective cooling system.

2.1 Forced Convection and Heat Dissipation

When an electronic component operates, electrical energy is partly converted into heat. That heat must travel from the component surface into the surrounding air or another cooling medium before it can be discharged from the equipment.

Natural convection depends on temperature differences and the movement of surrounding air. Although this method requires little additional equipment, it may be insufficient when heat density is high, ventilation openings are limited, or internal components are closely arranged.

Forced convection uses a fan or blower to increase air movement. The moving air absorbs heat from component surfaces and carries it toward an exhaust opening or another heat rejection area.

The effectiveness of this process depends on several variables, including air velocity, temperature difference, surface area, airflow distribution, and the thermal resistance between the heat source and the cooling air.

A higher airflow rate can improve cooling under suitable conditions, but the relationship is not unlimited. If air bypasses the heat-generating components or circulates repeatedly within a small enclosure, additional fan capacity may produce less improvement than expected.

Consequently, an effective design must coordinate fan performance with the physical arrangement of the equipment.

2.2 Creating a Continuous Airflow Path

A cooling fan needs an unobstructed and purposeful airflow path to perform effectively.

In a typical electronic enclosure, cooler air enters through an intake opening, passes across heat-generating components, and exits through an exhaust opening. The arrangement should minimize unnecessary restrictions and reduce the possibility of hot air returning directly to the intake.

The location of the fan is therefore important. An exhaust fan positioned near a major heat source may remove hot air efficiently, while a poorly positioned fan may leave other areas inadequately ventilated.

Designers should also consider cable bundles, internal partitions, mounting brackets, protective grilles, and filters. These elements can redirect airflow, create dead zones, or increase system resistance.

For equipment with several independent heat sources, multiple fans or dedicated air channels may be necessary. Computational fluid dynamics can help evaluate complex layouts, while physical temperature testing remains essential for confirming actual performance.

2.3 Understanding Localized Hot Spots

The average temperature inside an enclosure does not always reveal its most serious thermal problems.

A circuit board may have a moderate overall temperature while a power semiconductor or motor driver operates near its maximum permitted temperature. This localized hot spot can become the limiting factor for equipment reliability.

Targeted airflow can help direct cooler air toward critical components. In some applications, a small blower is more effective than a larger axial fan because it can deliver air through a narrow passage or toward a specific surface.

The goal is not simply to circulate more air. It is to remove heat from the components that need cooling most urgently.

3. Common Types of Industrial Cooling Fans

Different fan structures produce different airflow patterns and pressure characteristics. Selecting the correct type helps balance cooling performance, available space, noise, and energy consumption.

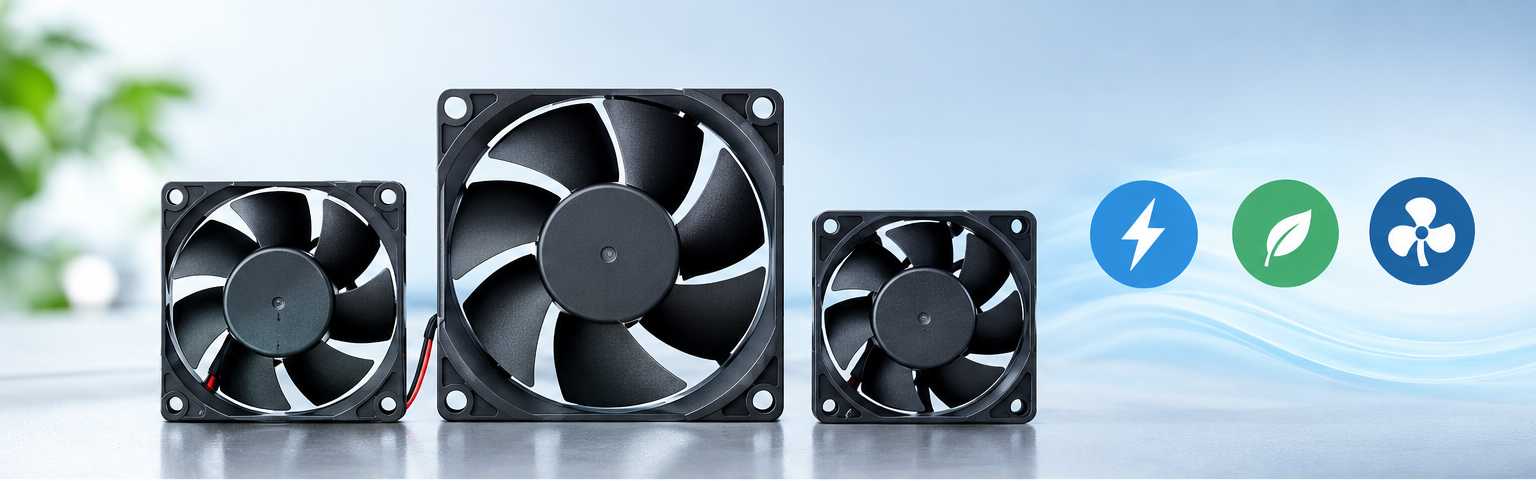

3.1 Axial Cooling Fans

Axial fans move air approximately parallel to the rotating shaft. They are widely used in electronic enclosures, control panels, power supplies, communication equipment, and industrial machinery.

Their major advantages include a relatively simple structure, convenient installation, and the ability to move substantial air volumes within a compact footprint.

Axial fans are particularly suitable when equipment requires general ventilation or direct airflow across heat sinks and circuit boards. They can also be arranged as intake or exhaust units to establish an enclosure ventilation system.

Nevertheless, an axial fan may lose a significant amount of airflow when installed in a system with high resistance. Dense filters, narrow ducts, closely packed components, and restrictive grilles can reduce its delivered performance.

Engineers should therefore examine the fan's pressure-flow curve and determine whether its performance matches the actual ventilation path.

3.2 Centrifugal Fans and Blowers

Centrifugal blowers draw air into an impeller and discharge it in a direction generally perpendicular to the intake axis.

This arrangement is useful when cooling air must travel through a narrow duct, pass through a restrictive channel, or reach a specific component inside a compact machine.

Common applications include medical equipment, instrumentation, industrial automation, packaging machinery, and specialized electronic assemblies.

Compared with a conventional axial fan of similar size, a centrifugal blower may provide more suitable pressure characteristics for a restrictive airflow path. However, the actual comparison depends on the specific product design and operating point.

Blower selection should account for outlet geometry, pressure requirements, mounting space, electrical consumption, and acoustic performance.

3.3 Cross-Flow Fans

Cross-flow fans generate a relatively broad airflow across an elongated outlet. Their structure can be advantageous when equipment requires distributed airflow along a long or narrow area.

Potential applications include certain air-conditioning assemblies, heating equipment, commercial appliances, and specialized ventilation systems.

The principal design consideration is the required airflow pattern. A cross-flow fan can provide a useful distribution of air across a wide section, but it may not be the best solution for every high-pressure application.

Engineers should evaluate the dimensions of the installation space, the length of the required airflow region, and the pressure losses associated with surrounding components.

3.4 Compact and Frameless Cooling Fans

Compact fans are especially important in equipment with limited installation space. They can be integrated into small electronic products, miniature instruments, compact control modules, and embedded systems.

Frameless fan designs may offer greater flexibility when the equipment manufacturer wants to incorporate the rotor and motor assembly into a customized housing or mechanical structure.

These solutions require careful consideration of rotor protection, mounting tolerances, vibration, electrical connections, and mechanical safety. The absence of a conventional frame does not eliminate the need for suitable guarding or structural support.

For OEM manufacturers, compact and frameless designs can create opportunities to optimize internal layouts and develop application-specific cooling structures.

4. How to Choose the Right Industrial Cooling Fan

A reliable selection process begins with the thermal requirements of the equipment rather than the specifications of a particular product.

4.1 Calculate the Heat Load

First, identify the amount of heat that must be removed from the enclosure or component.

The heat load can be estimated from electrical losses, equipment operating data, component datasheets, and measurements taken during testing. Not all electrical input becomes heat inside the same enclosure, so the calculation should reflect the actual system boundary.

For preliminary estimates, the required airflow can be approximated using the relationship between heat transfer, air mass flow, specific heat capacity, and the allowable temperature rise.

This calculation provides a starting point, not a final product specification. Real equipment introduces airflow leakage, nonuniform temperature distribution, filter resistance, recirculation, and other factors that require additional engineering evaluation.

A reasonable design margin may be necessary, but excessive oversizing can increase noise, electrical consumption, and system cost.

4.2 Evaluate Airflow and Static Pressure Together

Airflow is commonly expressed in cubic feet per minute, or CFM, and sometimes in cubic metres per hour.

Static pressure describes a fan's ability to overcome resistance in the cooling system. It becomes especially important when air passes through filters, heat sinks, ducts, narrow vents, or densely arranged components.

A fan's maximum free-air airflow is normally measured under conditions with very little resistance. It should not be assumed to represent the airflow delivered after installation.

The pressure-flow curve, often called the P-Q curve, shows how airflow changes as static pressure increases. The actual operating point depends on the interaction between the fan curve and the resistance of the equipment.

When comparing products, engineers should identify the airflow required at the expected system pressure instead of comparing maximum CFM values alone.

4.3 Match Fan Dimensions to the Installation Space

Frame size and fan thickness determine whether a product can fit into the available installation space.

Common compact formats include 25 mm, 30 mm, 40 mm, 50 mm, 60 mm, 80 mm, 92 mm, and 120 mm models, although availability and performance vary by product series.

A larger fan may deliver the required airflow at a lower rotational speed, but it may not fit within the enclosure. A smaller fan may fit more easily but require higher speed or stronger pressure performance.

Before finalizing a selection, check mounting-hole positions, overall dimensions, connector clearance, cable routing, airflow direction, and access for replacement.

4.4 Choose the Correct Voltage and Current Rating

The fan's rated voltage must match the equipment's power architecture.

Low-voltage DC fans are common in electronic devices and embedded equipment. Twelve-volt models may be suitable for systems with an established 12 V supply, while 24 V models are frequently considered for industrial control equipment. Five-volt models can be useful in compact electronics that already provide a compatible supply.

A 12 volt dc cooler fan may be appropriate for a controller, compact machine, or electronic enclosure with a compatible 12 V power rail. The engineering team must still verify its current consumption, startup behavior, airflow, pressure performance, and operating temperature range.

A 5v dc cooling fan can simplify integration into low-voltage electronic equipment, but its power budget deserves particular attention. The available supply must support both the fan and the other connected components during startup and normal operation.

Voltage compatibility alone does not establish suitability. Engineers should also confirm polarity, connector type, wire length, protection circuitry, and allowable voltage variation.

4.5 Consider Operating Temperature and Environmental Conditions

Industrial equipment may operate in warm factories, enclosed electrical cabinets, dusty workshops, outdoor installations, or areas exposed to vibration and moisture.

These conditions influence fan selection. High ambient temperature can reduce the available cooling margin and affect motor or bearing life. Dust accumulation can restrict airflow, while moisture and corrosive contaminants may damage components that lack suitable protection.

Designers should review the fan's specified operating temperature range, environmental protection, insulation requirements, and any application-specific compliance requirements.

If the equipment operates continuously, thermal endurance and long-term reliability become particularly important.

4.6 Establish Acceptable Noise and Power Consumption

A cooling fan must satisfy thermal requirements without creating unacceptable acoustic or electrical burdens.

Noise can become a concern in laboratories, medical environments, office equipment, and appliances used near people. Fan blade design, rotational speed, motor control, mounting rigidity, and airflow turbulence all influence acoustic performance.

Power consumption is another important factor, particularly when equipment contains several fans or operates continuously.

A larger fan running at a lower speed may sometimes provide a useful balance between airflow and noise, but this depends on the installation geometry and pressure requirements.

The best solution is one that meets thermal targets while respecting the equipment's acoustic, energy, and reliability limits.

5. Why Brushless DC Cooling Fans Are Important in Industrial Equipment

Brushless DC motors are widely used in compact cooling fans because they avoid the mechanical commutation brushes found in conventional brushed motors.

A brushless dc cooling fan uses electronic commutation to control motor operation. Depending on its design, it may provide efficient operation, convenient speed control, and useful integration features for equipment manufacturers.

5.1 Reduced Brush Wear

Because brushless motors do not rely on physical brushes to perform electrical commutation, they eliminate brush wear as a failure mechanism.

However, this does not mean that every brushless fan has an unlimited service life. Bearings, electronic components, insulation, lubrication, contamination, and operating temperature can all affect reliability.

For this reason, buyers should evaluate the complete fan assembly rather than treating motor type as the only indicator of quality.

5.2 Flexible Speed Control

Some brushless DC fans support pulse-width modulation, commonly called PWM, which allows a controller to adjust fan speed.

Temperature-based speed control can reduce unnecessary airflow when equipment operates under light loads and increase cooling capacity when temperatures rise.

This approach may help balance noise and energy consumption. However, the control method must be compatible with the fan's electrical interface and operating specifications.

Engineers should verify minimum operating speed, startup requirements, control signal characteristics, and behavior under abnormal conditions.

5.3 Monitoring and Protection Features

Depending on the model, brushless DC fans may support tachometer feedback, rotation detection, or alarm outputs.

These features can help equipment controllers identify a stopped fan, detect abnormal operation, and initiate a protective response before component temperatures become critical.

Not every model includes every feature. OEM buyers should specify required monitoring functions during the design stage rather than assume that they are standard.

5.4 Reliability Through System-Level Design

The service life of a cooling fan depends on more than its motor architecture.

Bearing selection, lubrication, temperature exposure, vibration, mounting stress, dust accumulation, electrical quality, and operating speed all influence the result.

For continuous-duty applications, engineers should request clearly defined life-test conditions and confirm whether the stated lifetime represents a statistical estimate under specified conditions.

A well-selected brushless fan, correctly installed and operated within its rated limits, can contribute to dependable industrial equipment performance.

6. Applications of Industrial Cooling Fans Across Different Industries

Industrial cooling fans support a broad range of equipment categories. Although their basic function is similar, the required airflow pattern, pressure, electrical configuration, and environmental resistance can differ substantially between applications.

6.1 Electrical Control Cabinets and Automation Equipment

Electrical control cabinets may contain programmable logic controllers, variable-frequency drives, contactors, power supplies, relays, and communication modules. These components generate heat during operation, especially when equipment runs continuously or processes high electrical loads.

An industrial axial fan can establish circulation through the cabinet, while a blower may be useful when air must pass through a narrow channel or reach a concentrated heat source.

Engineers should consider the cabinet's total heat load, internal component arrangement, ambient temperature, filter resistance, and required protection against contaminants.

For cabinets exposed to dust, a filtered intake may be necessary. However, filters gradually accumulate contaminants and can restrict airflow. Maintenance schedules should therefore account for filter inspection and replacement.

Where outside air is unsuitable, a closed-loop thermal management solution may be more appropriate than simply drawing ambient air into the cabinet.

6.2 Telecommunications and Data Communication Equipment

Communication devices often contain processors, power conversion components, network interfaces, and other heat-generating electronics within compact housings.

In these applications, cooling performance must be balanced against noise, power consumption, equipment density, and service continuity.

Compact axial fans are often considered for general ventilation, while higher-pressure fans or blowers may be required when air must pass through densely packed components.

Equipment designers should also evaluate fan redundancy where uninterrupted operation is important. A system with multiple fans may be designed to maintain partial cooling capacity if one fan fails, provided that the remaining units can handle the resulting thermal load.

Monitoring functions can improve fault detection and maintenance planning.

6.3 Medical and Laboratory Equipment

Medical devices and laboratory instruments may require stable internal temperatures, predictable airflow, and carefully controlled acoustic performance.

Examples include diagnostic instruments, analytical equipment, refrigeration systems, and other electrically powered devices that generate heat during use.

The choice of fan depends on the device's thermal architecture. A compact axial fan may be appropriate for an open internal cooling path, while a blower may be more effective for a confined channel.

Equipment manufacturers must assess applicable safety standards, contamination-control requirements, airflow separation, and any restrictions related to the intended medical application.

A fan's use in medical equipment does not, by itself, establish that the complete device meets medical regulatory requirements. Compliance must be evaluated at the appropriate product and system levels.

6.4 Industrial Packaging and Sealing Machinery

Packaging and sealing machines may contain motors, control electronics, heating elements, and power conversion systems. Heat generated by these components can influence control stability and the reliability of nearby electronic assemblies.

Cooling fans can support cabinet ventilation, remove heat from power modules, and provide airflow to selected machine components.

In compact packaging equipment, a centrifugal blower may be useful when cooling air must be directed through a narrow passage. Axial fans can be suitable when the main objective is to ventilate a larger enclosure.

The installation must also account for vibration, airborne particles, operating cycles, and the machine's available electrical supply.

6.5 Commercial Refrigeration and Temperature-Controlled Equipment

Commercial refrigeration systems rely on controlled heat transfer to maintain the desired temperature inside an enclosure or compartment.

Fans may be used to circulate air, support heat exchange, or ventilate electronic control sections. Their role depends on the refrigeration system's design and airflow architecture.

For refrigeration applications, engineers should evaluate low-temperature performance where applicable, condensation exposure, moisture resistance, bearing suitability, and the expected operating cycle.

A fan selected for a warm, dry cabinet should not automatically be assumed suitable for an environment involving condensation or substantial temperature variation.

6.6 Power Supplies, Chargers, and Energy Equipment

Power supplies, charging systems, inverters, and related electrical equipment may generate considerable heat during energy conversion.

A cooling fan helps remove heat from power semiconductors, magnetic components, heat sinks, and other internal assemblies.

The design must account for the actual loss distribution rather than relying only on the equipment's total rated power. A device with a high power rating may have a relatively manageable thermal load if its conversion efficiency is high, while a smaller device with concentrated heat sources may still require carefully directed airflow.

Fan control can also be integrated with temperature sensors to adapt cooling performance to operating demand.

6.7 Industrial Robots and Compact Machinery

Robotic controllers, motor drives, embedded computers, and compact automated machines often have limited space for ventilation.

Compact fans can provide localized cooling without significantly increasing the equipment's overall dimensions. Where the air path is restrictive, a small blower may offer a better fit than a conventional axial fan.

Mechanical vibration, repeated motion, cable routing, and access for servicing should be considered during integration.

For machinery expected to operate over extended shifts, fan reliability and straightforward replacement can contribute to lower maintenance costs.

7. AC Fans Versus DC Fans for Industrial Cooling

The choice between AC and DC cooling fans depends on the available power supply, required control functions, operating environment, and system design.

AC fans can be convenient in equipment supplied directly from an AC electrical system. DC fans are often attractive in electronic devices and machines that already contain regulated low-voltage DC power.

DC fans may also provide convenient speed-control options, depending on the design. Nevertheless, neither category is universally superior. Performance and energy consumption should be compared using relevant product data and realistic operating conditions.

The following table summarizes typical selection considerations.

The final decision should reflect the complete equipment design. If the machine already provides a stable DC supply, a compatible DC fan may simplify integration. If the cooling system is designed around an AC supply, an AC fan may be a practical alternative.

8. Common Cooling Fan Selection Mistakes

Even a technically capable fan can perform poorly when the surrounding system has not been designed correctly.

8.1 Choosing a Fan Based Only on Maximum Airflow

A high maximum airflow rating does not guarantee adequate cooling after installation.

Filters, grilles, ducts, and tightly packed components can increase pressure losses. If the selected fan cannot overcome these restrictions, its delivered airflow may be insufficient.

The solution is to compare pressure-flow curves and evaluate the expected operating point.

8.2 Ignoring the Heat Distribution Inside the Enclosure

A fan positioned far from the most critical heat source may ventilate the enclosure without adequately cooling the component that needs it most.

Engineers should identify major heat-generating components and determine whether air reaches their surfaces effectively.

Thermal imaging and temperature sensors can help identify areas that require improved airflow.

8.3 Selecting the Wrong Voltage

Connecting a fan to an incompatible voltage can cause startup problems, unstable operation, reduced performance, or damage.

The rated voltage, permitted operating range, current demand, polarity, and connector arrangement must be checked before installation.

8.4 Overlooking Noise and Vibration

A fan that meets airflow requirements may still be unsuitable if its acoustic output exceeds the application's limits.

Improper mounting can transmit vibration into the enclosure and produce additional noise. Blade interaction with nearby grilles or narrow passages may also create undesirable acoustic effects.

A complete evaluation should include both the fan itself and the installed system.

8.5 Neglecting Maintenance and Contamination

Dust accumulation, obstructed vents, and dirty filters can gradually reduce cooling effectiveness.

A fan should be selected with the operating environment and planned maintenance schedule in mind. Where access is difficult, reliability and serviceability become particularly important.

8.6 Assuming That All Brushless Fans Have the Same Reliability

Brushless motor technology eliminates brush wear, but it does not remove all possible failure mechanisms.

Bearing wear, electronic faults, thermal stress, moisture, and contamination can still affect performance. Buyers should compare the manufacturer's test conditions, operating limits, and product documentation rather than rely on a single marketing claim.

9. How OEM Customization Improves Industrial Cooling Solutions

Standard fan models can meet many cooling requirements, but some equipment designs need application-specific adjustments.

OEM customization allows equipment manufacturers to coordinate fan characteristics with their product architecture instead of redesigning the equipment around an unsuitable standard component.

9.1 Customized Electrical Specifications

Depending on manufacturing capability and model design, customization may include voltage options, cable length, connector type, terminal arrangement, and compatible speed-control functions.

These details can simplify assembly and reduce the need for additional adapters or wiring changes.

Electrical customization should be confirmed against the available product platform and the project's technical requirements.

9.2 Customized Mechanical Dimensions

A customized frame, mounting structure, outlet arrangement, or blower housing may help resolve space limitations.

However, changing the housing or mounting structure can affect airflow, vibration, mechanical strength, and acoustic performance. Prototype testing should confirm that the customized assembly meets its requirements.

9.3 Application-Specific Performance Tuning

Some projects prioritize maximum airflow, while others require higher static pressure, low noise, or reduced power consumption.

The supplier and equipment manufacturer should establish the required operating point and identify suitable models or design adjustments.

The evaluation may include airflow testing, pressure measurements, electrical testing, temperature testing, vibration checks, and acoustic measurements, depending on the application.

9.4 Quality Control and Product Consistency

Consistent performance is essential when cooling fans are installed in products manufactured at scale.

A structured quality process may include incoming-material inspection, motor and assembly checks, rotational testing, dynamic balancing where applicable, electrical verification, and final inspection.

The relevant tests should reflect the actual product design and customer requirements. Not every test applies to every fan model, so suppliers should clearly identify the inspections and validation procedures used.

For OEM projects, documentation, sample approval, production traceability, and change management can help maintain consistency across manufacturing batches.

10. Quality Standards, Certifications, and Supplier Evaluation

Industrial cooling fans may be incorporated into products sold across different markets and regulated industries. Consequently, certification and compliance documentation can be important parts of supplier evaluation.

However, certification claims must be checked carefully. A supplier's general statement that its products are certified does not automatically mean that every model, configuration, or complete end product is covered by the same approval.

Purchasers should verify the applicable certificate, product scope, model identification, issuing organization, and any conditions attached to the approval.

For example, UL recognition or listing should be checked against the exact product category and relevant model information. CE-related documentation should be evaluated in relation to the applicable European Union legislation and the product's intended market. Environmental compliance documents should likewise match the actual product and material requirements.

A supplier assessment should consider several areas:

1. Technical documentation, including dimensions, electrical ratings, airflow data, and pressure-flow curves.

2. Quality management procedures and manufacturing consistency.

3. Applicable safety and environmental compliance documentation.

4. Reliability testing and operating-condition limits.

5. Engineering support and OEM customization capabilities.

6. Lead times, supply continuity, packaging, and after-sales service.

China Chungfo Fan works in the fan and blower manufacturing sector, serving equipment manufacturers with different cooling requirements. For a new project, buyers should provide the intended application, operating voltage, available installation space, heat load, and environmental conditions so that candidate products can be evaluated against the actual requirements.

11. Future Trends in Industrial Cooling Fan Technology

Industrial cooling technology continues to evolve as equipment becomes more compact and energy management becomes increasingly important.

11.1 Intelligent Temperature-Based Control

Fixed-speed cooling may provide more airflow than necessary when a machine operates at low load.

Temperature-based fan control allows cooling capacity to respond to equipment demand. This can reduce unnecessary noise and power consumption while preserving adequate thermal performance.

Successful implementation requires suitable sensors, control logic, and a fan that supports the required operating range.

11.2 Higher Integration Density

As electronic assemblies become smaller, thermal energy may become concentrated in increasingly limited spaces.

This trend increases the importance of compact fans, miniature blowers, carefully designed air channels, and localized cooling.

Mechanical and thermal integration must be considered together because a smaller installation space may increase airflow resistance.

11.3 Improved Monitoring and Predictive Maintenance

Fans equipped with compatible monitoring outputs can provide information about rotational speed or abnormal operation.

When this information is integrated into equipment monitoring systems, operators may be able to identify potential cooling problems earlier and schedule maintenance before overheating causes an interruption.

The value of such features depends on the equipment's criticality, monitoring architecture, and maintenance strategy.

11.4 Application-Specific and Energy-Conscious Design

Future cooling systems will increasingly balance thermal performance, power consumption, noise, and operating life.

Instead of selecting the largest available fan, designers can optimize the airflow path, reduce unnecessary restrictions, choose an appropriate operating point, and implement variable-speed control where practical.

This system-level approach can improve the effectiveness of the entire cooling solution.

12. Conclusion: Building a Reliable Industrial Heat Management Strategy

Industrial cooling fans are important components in equipment heat management. Their effectiveness depends on the relationship between the heat load, airflow path, static pressure, electrical supply, environmental conditions, and required service life.

Axial fans are useful for many general ventilation applications, while centrifugal blowers can be suitable for more restrictive airflow paths. Cross-flow fans and compact or frameless designs may provide advantages in specialized installation layouts.

Choosing the right product requires more than comparing dimensions or maximum airflow ratings. Engineers should calculate the approximate cooling requirement, evaluate system resistance, confirm voltage compatibility, consider noise and environmental exposure, and validate performance under realistic operating conditions.

Brushless DC fan technology can offer useful control and integration capabilities, but bearing quality, temperature, mechanical installation, and electronic reliability remain important factors.

For OEM manufacturers, a suitable supplier should provide accurate technical documentation, consistent manufacturing quality, appropriate compliance information, and practical engineering support.

China Chungfo Fan can be considered as a potential supplier for industrial cooling fans and blowers where product selection, customization, and manufacturing coordination are important to the project.

Ultimately, effective heat management is not achieved by the fan alone. It results from a well-designed thermal system in which the cooling component, airflow path, equipment structure, and operating strategy work together to protect critical components and support reliable equipment performance.

13. Frequently Asked Questions

13.1 What Is an Industrial Cooling Fan Used For?

An industrial cooling fan removes heat from electrical and mechanical equipment by moving air across heat-generating components or through an enclosure. Common applications include control cabinets, power supplies, automation equipment, communication systems, and industrial machinery.

13.2 How Do I Choose the Right Industrial Cooling Fan?

Begin by estimating the heat load and allowable temperature rise. Then evaluate required airflow, static pressure, fan dimensions, operating voltage, noise, environmental conditions, and service-life requirements. Confirm the selection using product data and, where possible, physical testing.

13.3 What Is the Difference Between an Axial Fan and a Centrifugal Blower?

An axial fan moves air approximately parallel to its shaft and is often used for general ventilation. A centrifugal blower redirects airflow through an impeller and can be suitable for applications that require air to pass through narrower or more restrictive passages. Actual performance depends on the model and operating conditions.

13.4 Are Brushless DC Cooling Fans Suitable for Continuous Operation?

They can be suitable for continuous-duty applications when the fan is correctly selected and operates within its specified limits. Bearing type, ambient temperature, electrical quality, contamination, vibration, and installation conditions all influence operating life.

13.5 What Is the Difference Between a 5 V and a 12 V DC Cooling Fan?

The main difference is the rated supply voltage, but the products may also differ in motor design, current consumption, rotational speed, airflow, and physical dimensions. The correct choice depends on the equipment's available power supply and cooling requirements, not voltage alone.

13.6 Why Is Static Pressure Important When Selecting a Cooling Fan?

Static pressure indicates the fan's ability to overcome resistance created by filters, ducts, grilles, heat sinks, and other obstructions. When these restrictions are significant, static pressure and the pressure-flow curve are essential for estimating actual installed airflow.

13.7 Can Industrial Cooling Fans Be Customized for OEM Projects?

Depending on the manufacturer's capabilities and the selected product platform, OEM options may include electrical connections, cable lengths, mounting arrangements, dimensions, and performance adjustments. Each customization should be validated to confirm electrical, mechanical, and thermal compatibility.

13.8 How Can I Improve the Efficiency of an Industrial Cooling System?

Start by reducing unnecessary airflow restrictions, positioning intake and exhaust openings effectively, directing air toward critical heat sources, maintaining clean filters, and selecting a fan for the actual operating point. Temperature-based speed control may provide further benefits when supported by the system design.

13.9 What Information Should I Provide When Requesting a Fan Quote?

Provide the application, required voltage, fan dimensions, target airflow, static pressure if known, ambient temperature, operating schedule, noise requirements, connector details, and applicable certification requirements. Drawings or photographs of the installation can also help the supplier evaluate the project.

13.10 Why Work With China Chungfo Fan?

China Chungfo Fan focuses on fan and blower products for different equipment applications. When evaluating a potential project, customers can discuss the intended use, performance requirements, available space, electrical configuration, and customization needs to identify an appropriate product solution.
